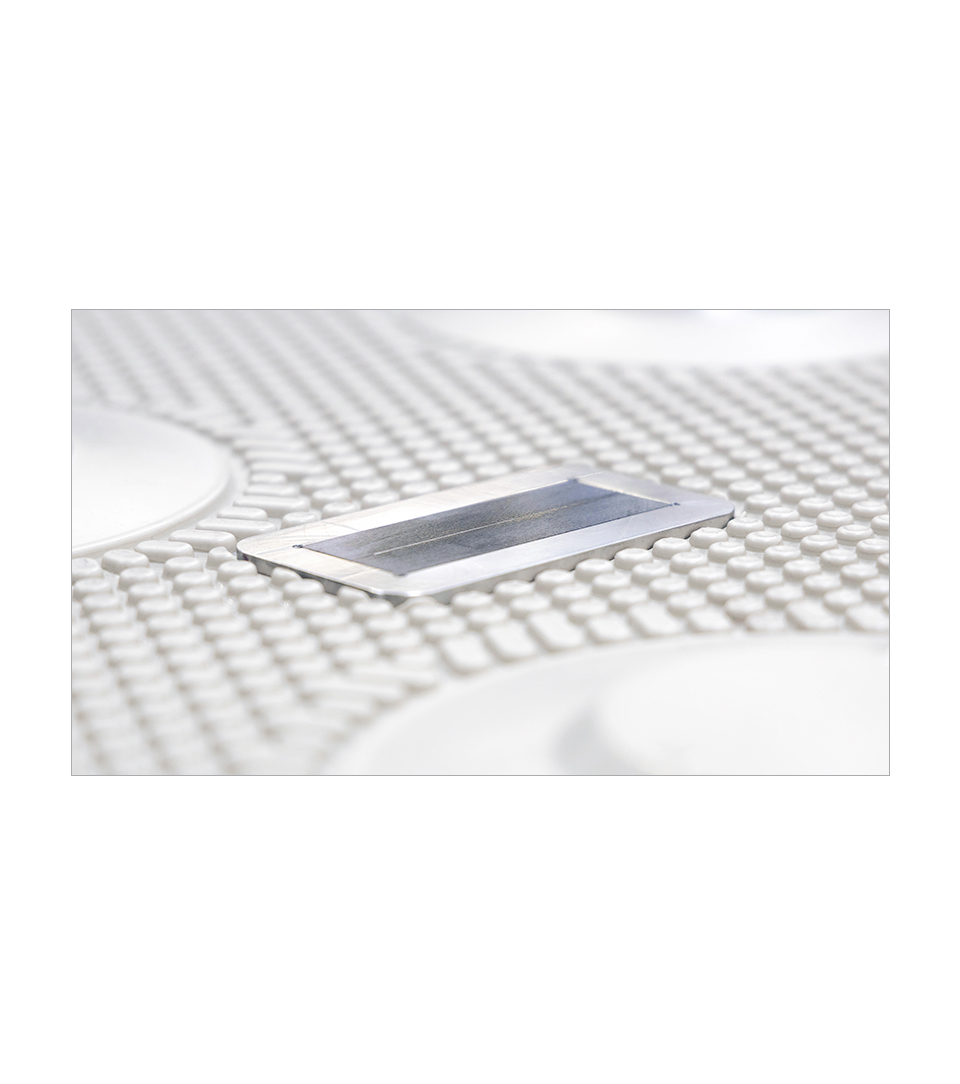

LENSER i-Plate
Sensor technology for moisture measurement in real time
The LENSER i-Plate opens up completely new insights into your individual filtration process. Reliable, digital real-time measurement provides you with a wide range of relevant data from your filter press during ongoing operation. In this way, you gain insights into your processes and can optimize them.
General information and advantages

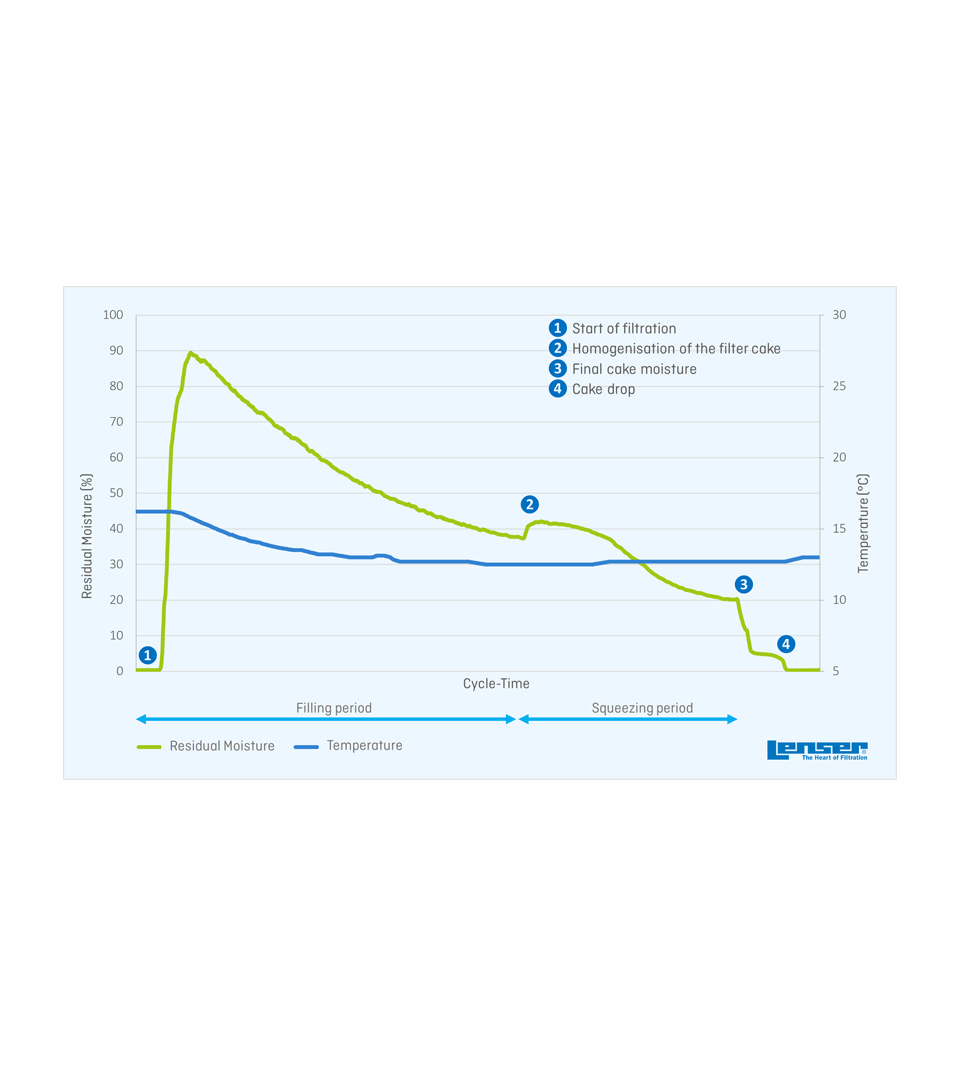

- Precise, continuous residual moisture measurement of the filter cake in the running press

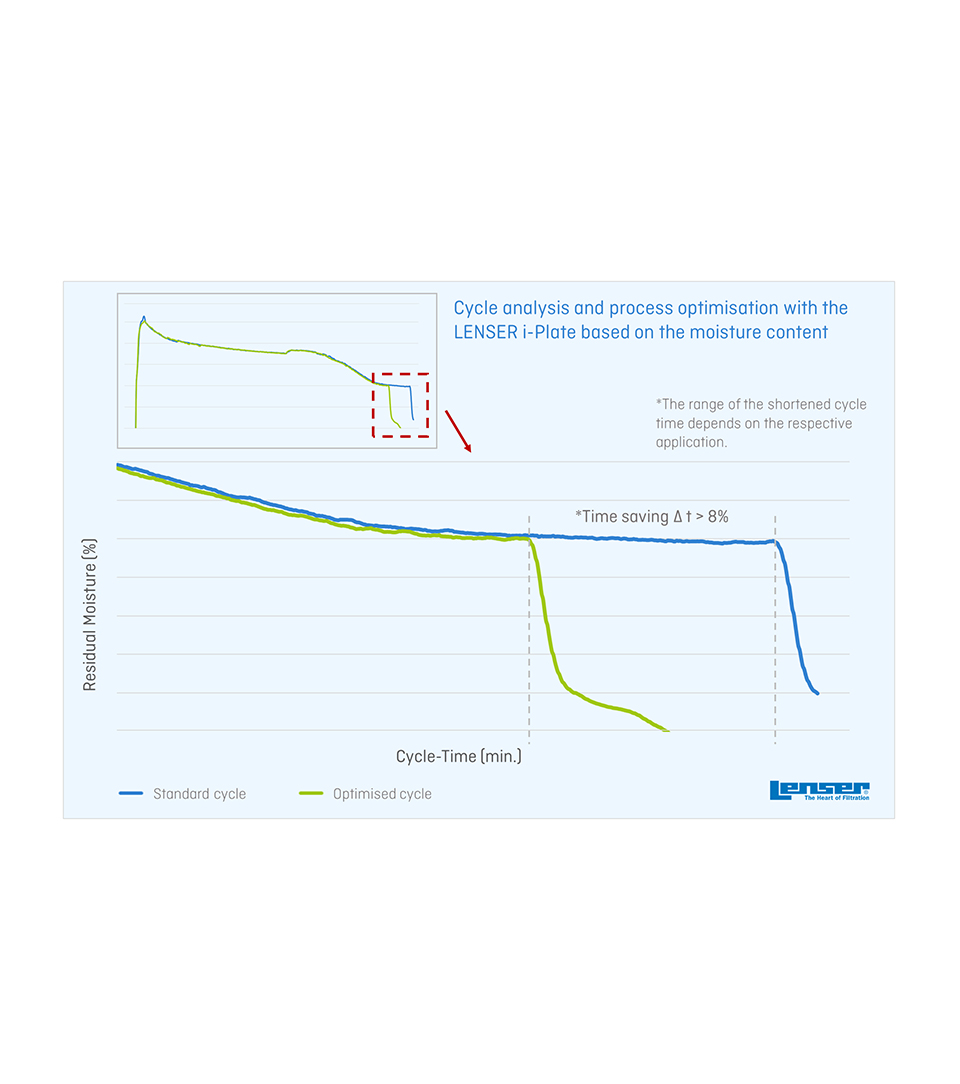

- Analysis and diagnosis of the process in real time
- Precise measurement for permanent documentation or individual optimization of processes
- Direct suspension contact – only the filter cloth separates the sensor from the suspension
- Suitable for filtration processes even in the high-pressure range
- Time-efficient and responsible use of resources
- Our #FiltrationExperts support you on site with installation, connection and calibration of your sensor
| Moisture measurement: | From 0% to 100% |
| Temperature measurement: | From 0°C to 70°C |
| Conductivity measurement: | From 0 mS/m to 500 mS/m |
| Material composition: | Stainless steel housing and special ceramics |
| Fields of application: | Chemicals, Minerals, Mining, Environment |
| Suitable plate formats: | From 470 mm to 2,440 mm |
| Maximum filtration pressure: | According to the specification of the respective LENSER chamber filter element |
| Sensor dimensions: | 110 x 60 mm |
| Signal outputs: | 2 analog and 1 digital output |
| Power supply: | From +12 V DC to +24 V DC; 3 W |
