KM bloc

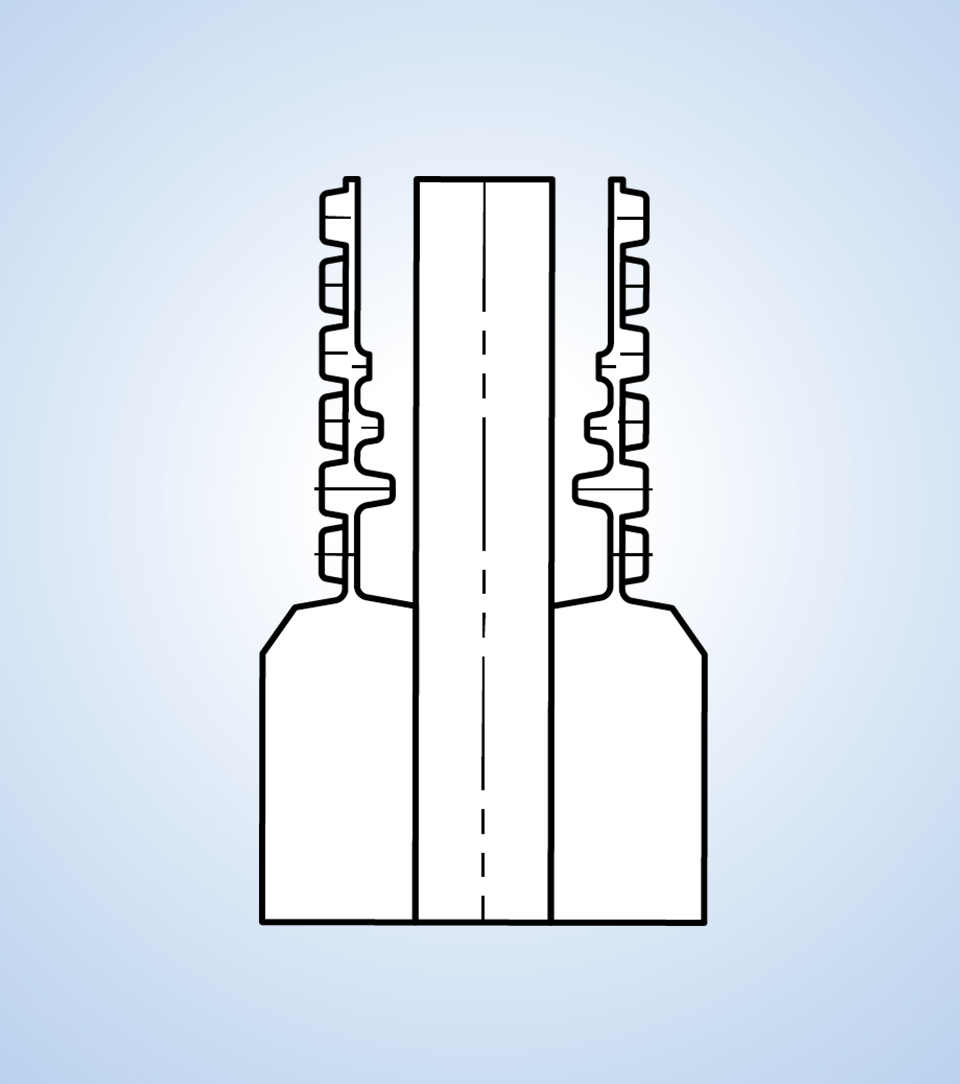

Membrane filter element for uniform cake thickness
The recessed membrane allows a more uniform cake thickness and a very good washing result.
Advantages
- Shorter filtration cycles
- Shorter washing times
- Higher dry solids content
- Even cake thickness distribution across filtration area
- Higher throughput rate
- Reduced water consumption
- Reduced air consumption during blow-drying
- Superior cake washing/blowing results
| Format: | From 470 mm to 1,500x2,000 mm |
| Cake thickness: | From 15 mm to 50 mm |
| Filtration pressure: | Up to 8 bar |
| Squeezing pressure: | Up to 16 bar |

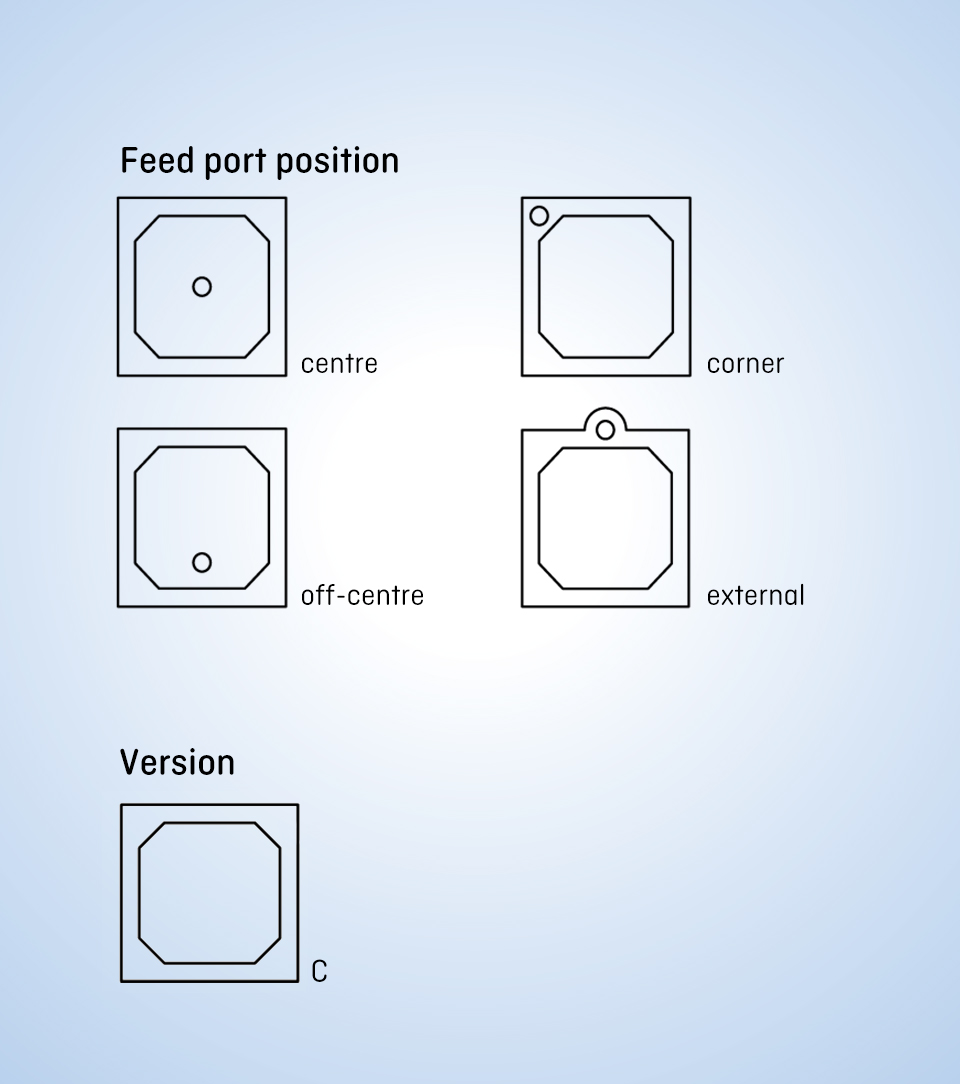

| Inlet position: | centre, off-centre, corner, external |
| Version: | C |
