KM UM bloc
Membrane filter element for squeezing into a low-filled or empty chamber

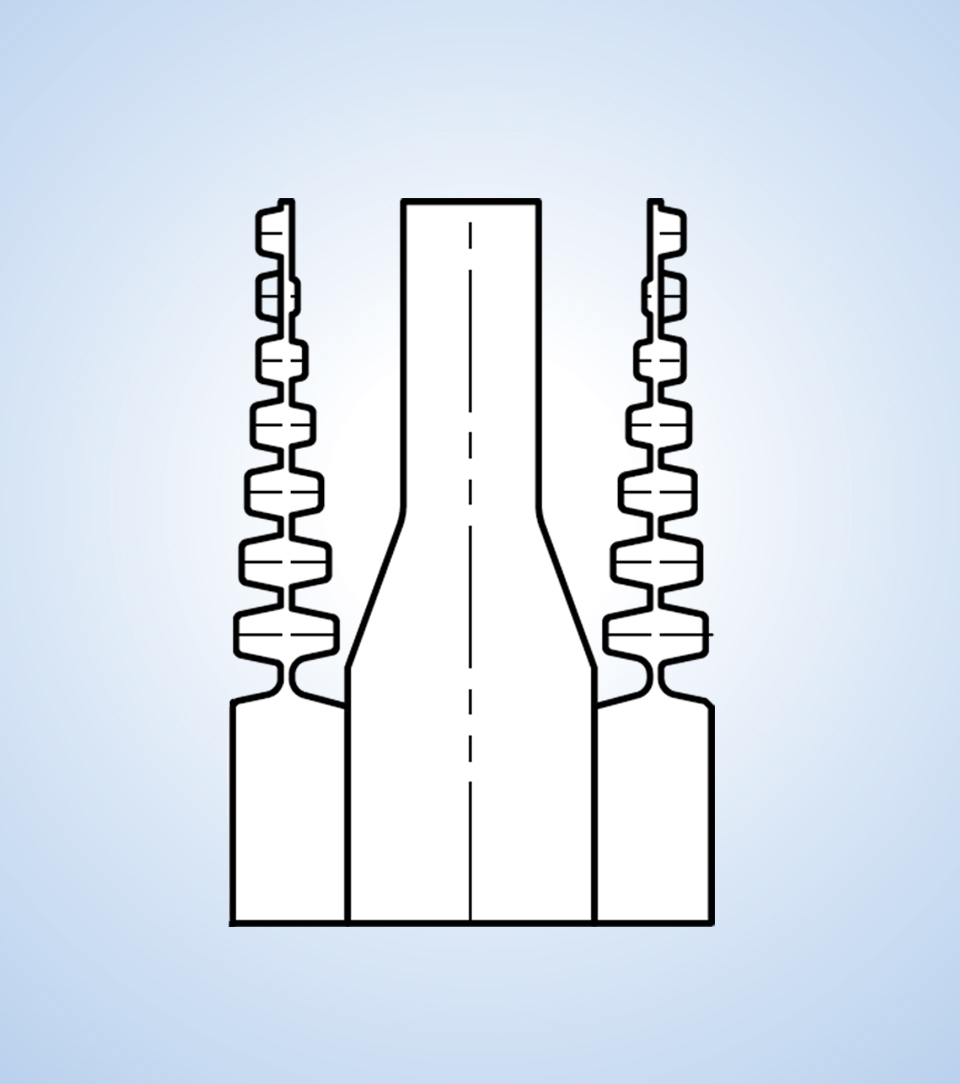

The UM bloc version is characterized by a bar row in the edge area that is stepped to double the nap height. It convinces with a particularly high operational reliability, as the UM membrane also tolerates a squeezing in an insufficiently filled or empty filter chamber.
Advantages
- Shorter filtration cycles
- Shorter washing times
- Higher dry solids content
- Higher throughput rate
- Reduced water consumption
- Reduced air consumption during blow-drying
- Superior cake washing/blowing results
- With stepped bar row in the edge area
- Suitable for repressing into a little filled or empty chamber
| Format: | 470 mm and from 800 mm to 2,440 mm |
| Cake thickness: | From 15 mm to 50 mm |
| Filtration pressure: | Up to 8 bar |
| Squeezing pressure: | Up to 16 bar |
| Inlet position: | centre, off-centre, corner, external |
| Version: | C |
